$147.00 $210.00

15.6 Laptop LCD Screen N156HCA-EAB C2 C4 LP156WFC-SPD1 SPD2 For Lenovo S540-15 C340-15 Flex-15IML ThinkPad L15 T15p Gen 1 30pin

1 6

Salez99

Display Size
View full details

SPECIFICATIONS

Application: Laptop

Brand Name: Haiyan

Certification: CE,RoHS

Compatible Brand: Acer,Asus,HP/Compaq,Dell(ru),Lenovo,Universal Screen

Component Type: TFT

High-concerned chemical: none

Item Type: Laptop LCD Screen

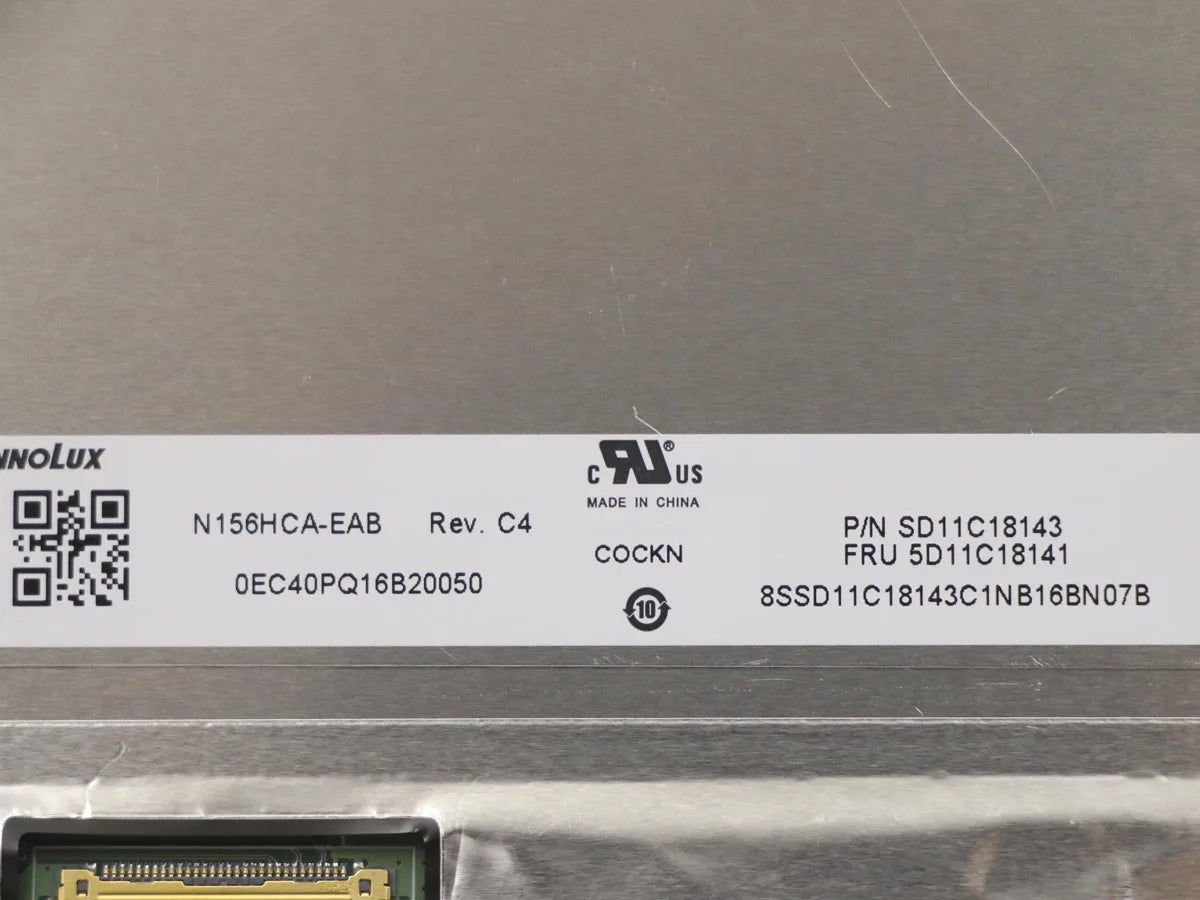

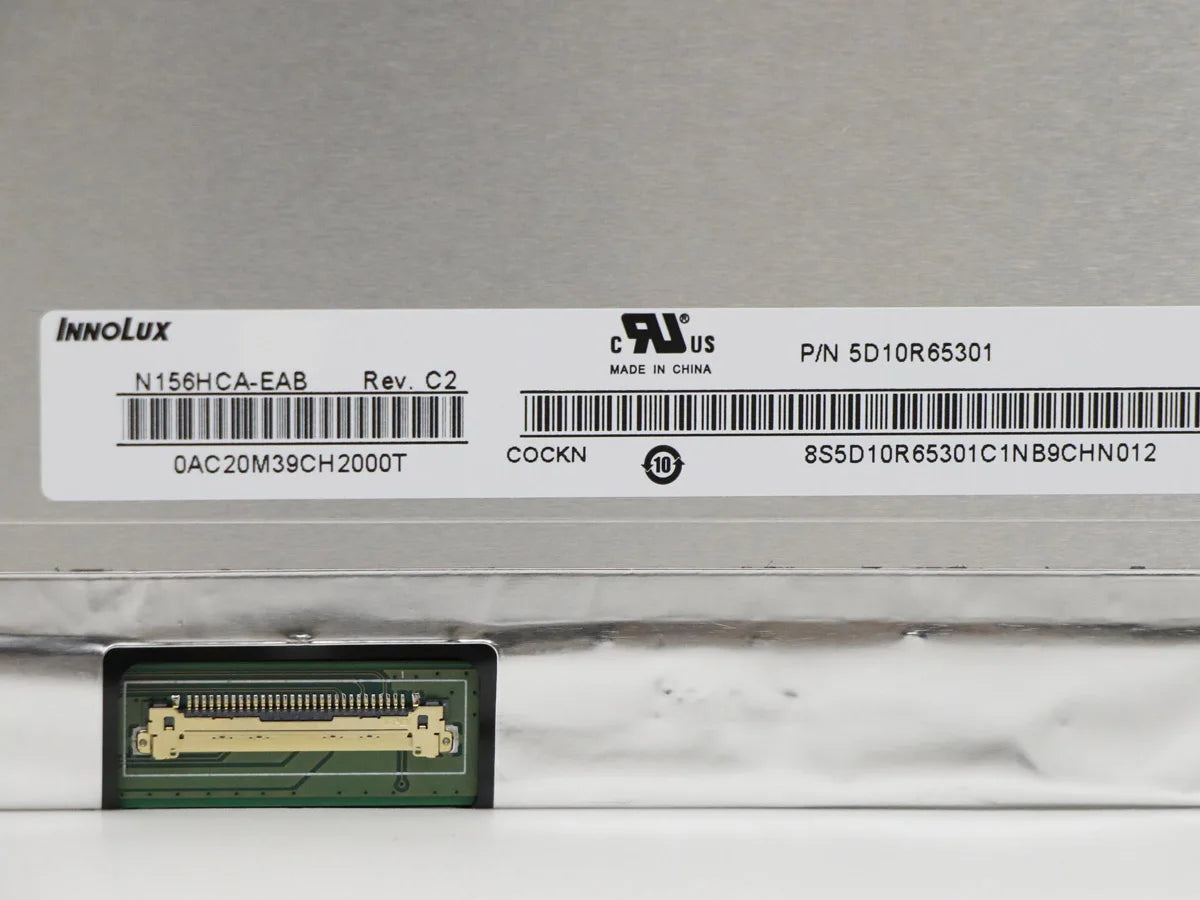

Model Number: N156HCA-EAB

Origin: Mainland China

Part Number: N156HCA-EAB

Resolution: FHD

NOTE: 1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.

2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.


LCD Screen Parameters


Panel Model: N156HCA-EAB or Compatible model.
Screen Size: 15.6"
Resolution: 1920(RGB)x1080 , FHD, 141PPI.
Outline Dim.: 350.66(H)×216.25(V) ×3.2(D) mm.
Contrast Ratio: 700:1 (Typ.) (TM).
Brightness: 250 cd/m² (Typ.).
Display Colors: 16.7M, 45% NTSC.
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10).
Backlight: WLED.
Surface: Matte.
Signal Interface: eDP (2 Lanes), 30 pins Connector.
Quality: A, Tested well before shipping.
Warranty: 180 days.

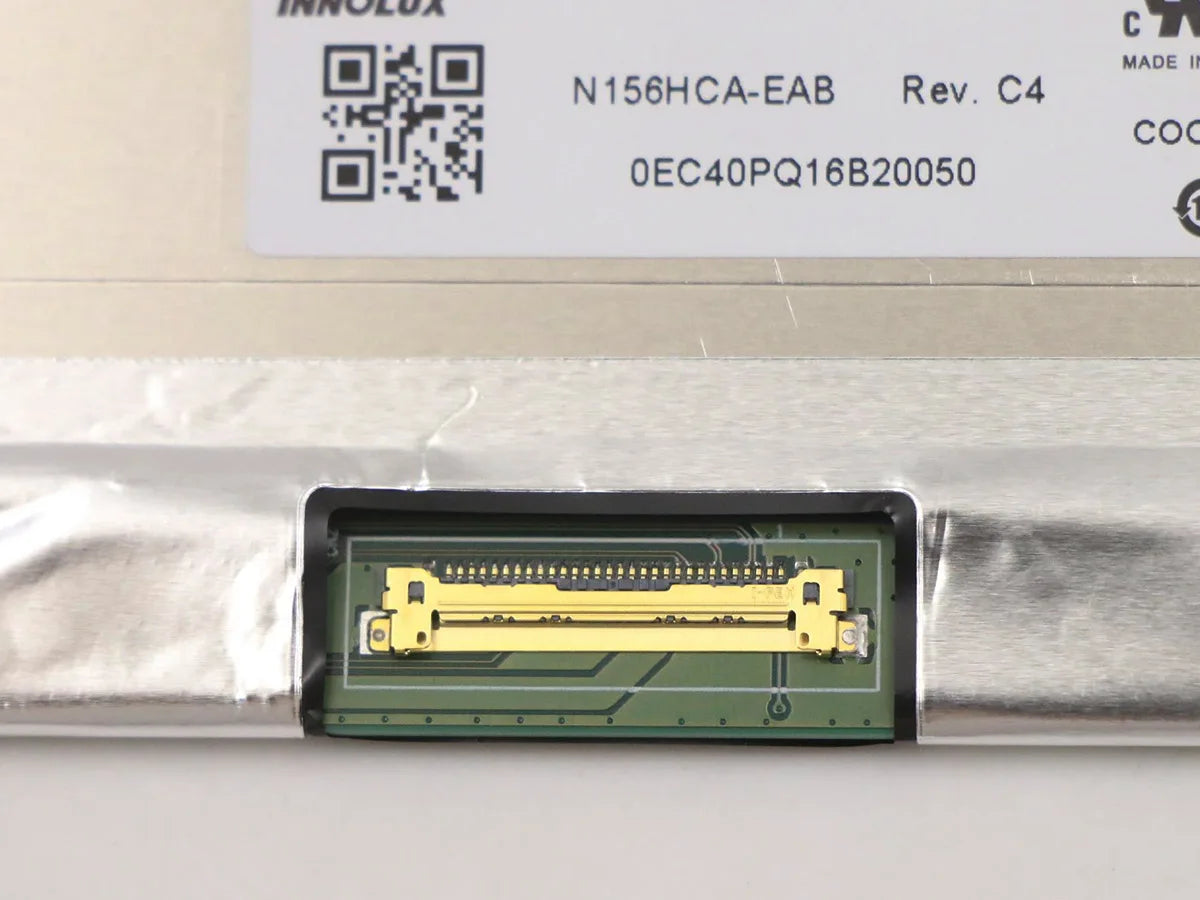

30 pins eDP Connector.
